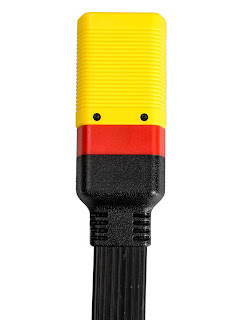

Easydiag 3.0 Launch X431 Scanner Diagnostic Scan Tool All System

Easydiag 3.0 Launch X431 Scanner Diagnostic Scan Tool All System

EasyDiag 3.0 only includes a connector,without any free software








Specification:
 Connection Method:Standard OBDII Interface,Micro USB2.0;
Typical Consumption:(12V) Static Current 25mA
Average Working Current of Overall Unit: 35mA
Working Temperature:-20 to 55C (-4 to 131F)
Storage Temperature:-30 to 70C (-22 to 158F)
Storage Humidity:<80%
Working Humidity: <60%
Dimension:LxWxH=48mmx24mmx32mm
Net Weight:Approx 26g
Working Voltage:Powered by vehicle battery, DC 9-15V

Launch Easydiag 3.0, upgraded version of Easydiag 2, is an ultra-smart OBD-II code reader & scanner developed specially for auto mechanics, students and DIY users. It turns your Apple or Android smart device into a powerful diagnostic scan tool, giving users full access to engine, transmission, ABS(Brakes), SRS( Seatbelts and Airbag) Systems. A highly intuitive menu guides mechanics through step-by-step procedures for viewing and clearing error codes, along with the ability to view enhanced live data.
To download the applicable application with easydiag 3.0,  you have to scan QR code on the package and activate the connector.
Description:
Easygoing for Android device into a powerful diagnostic scan tool, giving the technician full access to Engine, Transmission, ABS (Brakes), SRS (Seatbelts and Airbag) systems and more. A highly intuitive menu guides technicians through step-by-step procedures for viewing and clearing trouble codes, along with the ability to view enhanced live data. Full color graphing for OBD II is also available. This scan tool does not require an interface. A single Bluetooth connector along with the company\'s software allows the user to select from over 30 manufacturers for Asian, European and Domestic applications.

Note:
Works on 12V vehicle battery ONLY. It Will be burned if working on to other voltage power.
Free and Paid software are available to download and update within only 1 year after paid on App.
EasyDiag 3.0 only includes a connector,without any free software

Features:
Vehicle diagnostic tool & Convenient, economical and advanced vehicle accessories
1.Supports OBD-II protocol, 10 test modes
2.OBD software download
3.Built-in Bluetooth module
4.Compatible with Andriod and iOS devices
5.Support all cars with 16-pin OBD port
6.Reads all DTCs and supports live data stream display

Key Specifications/Special Features:
Full OBDII generic code reader/scanner capability included
Reads and clears codes on all vehicle systems
Complete system and subsystem coverage (engine, ABS, SRS, transmission and more) with live date and color graphing
Enhanced live date and for all vehicle system
Includes Bluetooth OBDII connector-optional extension cable available for easier plugging and unplugging of OBDII connector
Intuitive interface and easy to use
Customizable software-choose from over 70 Asian, European and North American manufacturer for enhanced capability
Single carline software priced individually per vehicle manufacturer
Additional coverage, capabilities and functions with each new software update
It supports lots of language:
Works on most 1996 and newer vehicles (OBD II & CAN)
Full OBDII generic code reader/scanner capability included at no charg
Reads and clear enhanced diagnostic error codes on free/paid vehicles
Complete system and subsystem coverage (engine, ABS, SRS and transmission ) with live data
Includes an extension cable available for easier plugging and unplugging of OBDII connector
Intuitive interface and easy to use with an application on the smartphone
Customizable software-Choose from over 70 Asian, European and North American manufacturers for enhanced capability
Single carline software priced individually per vehicle manufacturer.
Additional coverage, capabilities and functions with each new software update

Car Brand Supported:

USA:
for BXGM, for CHRYSLER, for G-M, for USAFO-RD etc.

European:
for AU-DI, for BE-NZ, for BM-W, for CITROEN, for DACIA, for EUROFORD, for FIAT, for GAZ, for GMSA, for JAGUAR, for LANCIA, for LANDRO-VER, for MINI, for OPEL, for PEUGEOT, for PORSC-HE, for RENAULT, for ROMEO, for ROVER, for SAAB, for SEAT, for SKODA, for SMART, for SPRINTER, for VAZ, for VOLVO, for VW, for FO-RD etc.

Asian:
for ACURA, for DAEWOO, for DAIHATSU, for HOLDEN, for HONDA, for HYUNDAI, for INFINITI, for JPISUZU, for KIA, for LEXUS, for MAHINDRA, for MARUTI, for MAZDA, for MITSUBISHI, for NISSAN, for PERODUA, for PROTON, for SSANGYONG, for SBA-RU, for SUZUKI, for TATA, for TLISUZU, for TO-YOTA etc.

Packaging Lists:
1 x EasyDiag 3.0 Connector
1 x Activation paper
1 x Cable Extension
